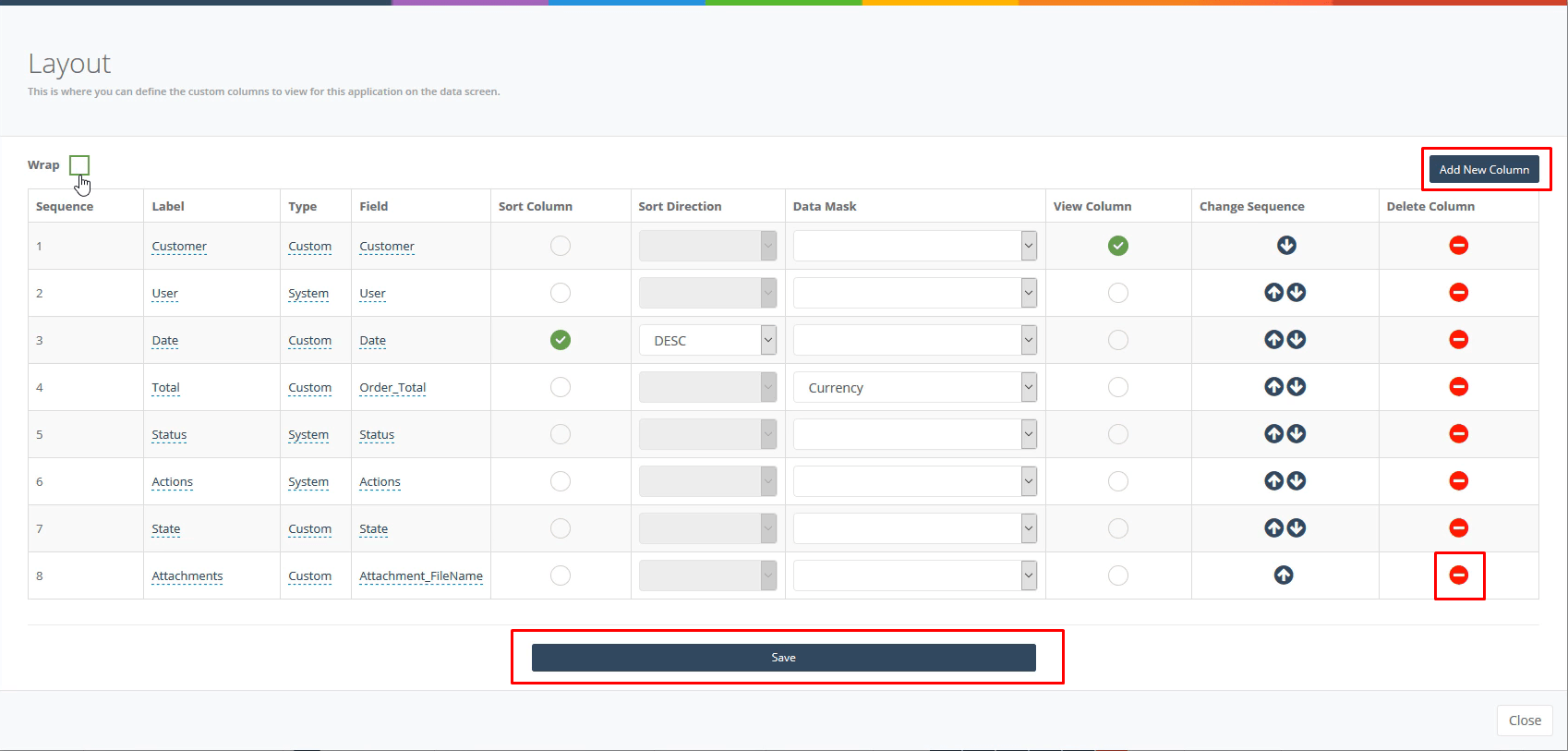

The Columns dialog allows changing the layout of the fields listed in the Data tab. You can add new columns by pressing the Add New Column button on the top. Existing columns can be removed by pressing the red icons next to them. You can have a minimum of 5 and a maximum of 20 columns for every application.

You can select from a list of Custom or System defined fields. System fields include:

  • User
  • Date Created
  • Last Update
  • Status
  • Actions
  • Group
  • Record ID

Custom fields are the database columns associated with that application. Changing the Type to ‘Custom’, Field selection is populated with columns from the application database.

Wrap property determines the packing style of the columns. When enabled, the data shown under each field, as well as the Action buttons will be ‘wrapped’ to fit into the allocated cells. When disabled, the excess items will cut off, resulting in a more compact view with less information.

Wrap Enabled
Wrap Disabled

You can choose a Sort Column and Sort Direction of ASC (Ascending) or DESC (Descending) to sort the records shown on the Data page. Based on the selection above, the Data page is sorted by the Name (ContactName) field.

Data Mask option defines the data formatting on this page. Options include RawNumber, and Date.

By default, the first column on the Data page will be the View Column. This means that clicking a name in this column will open that record in View Only mode. Click another field under the View Column section to make that field the view mode button.

The order of the columns can be changed easily by pressing the up and down arrows under the Change Sequence column.
